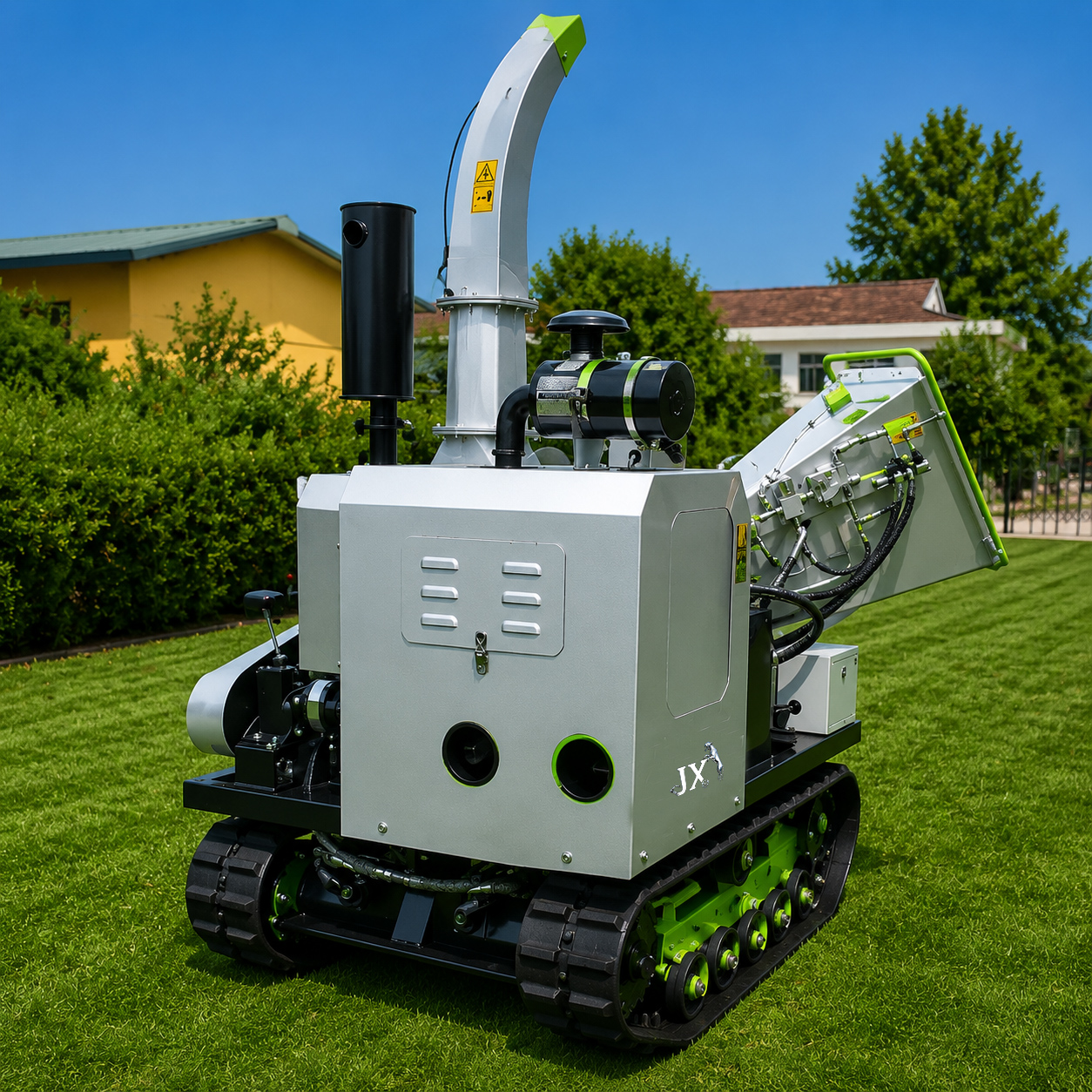

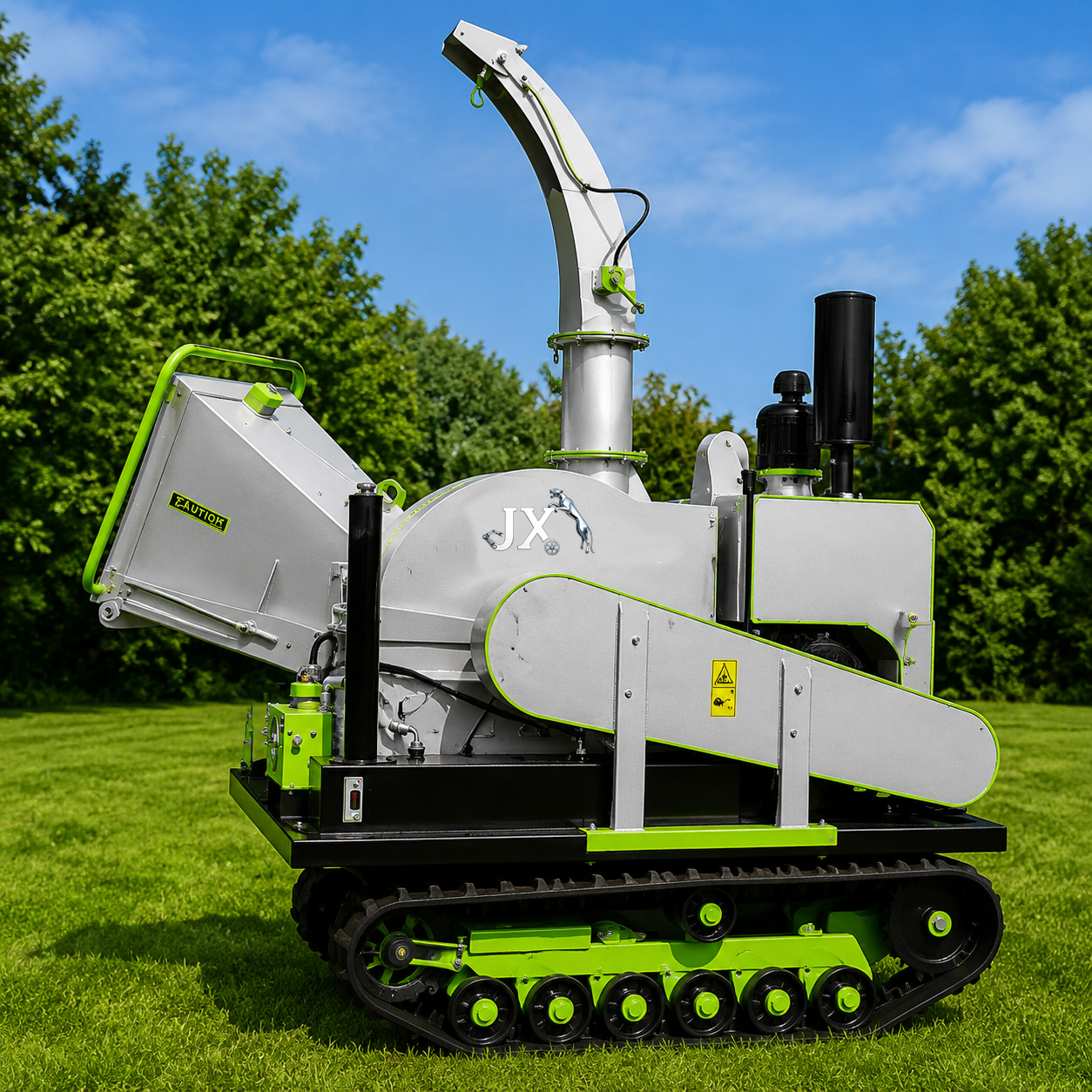

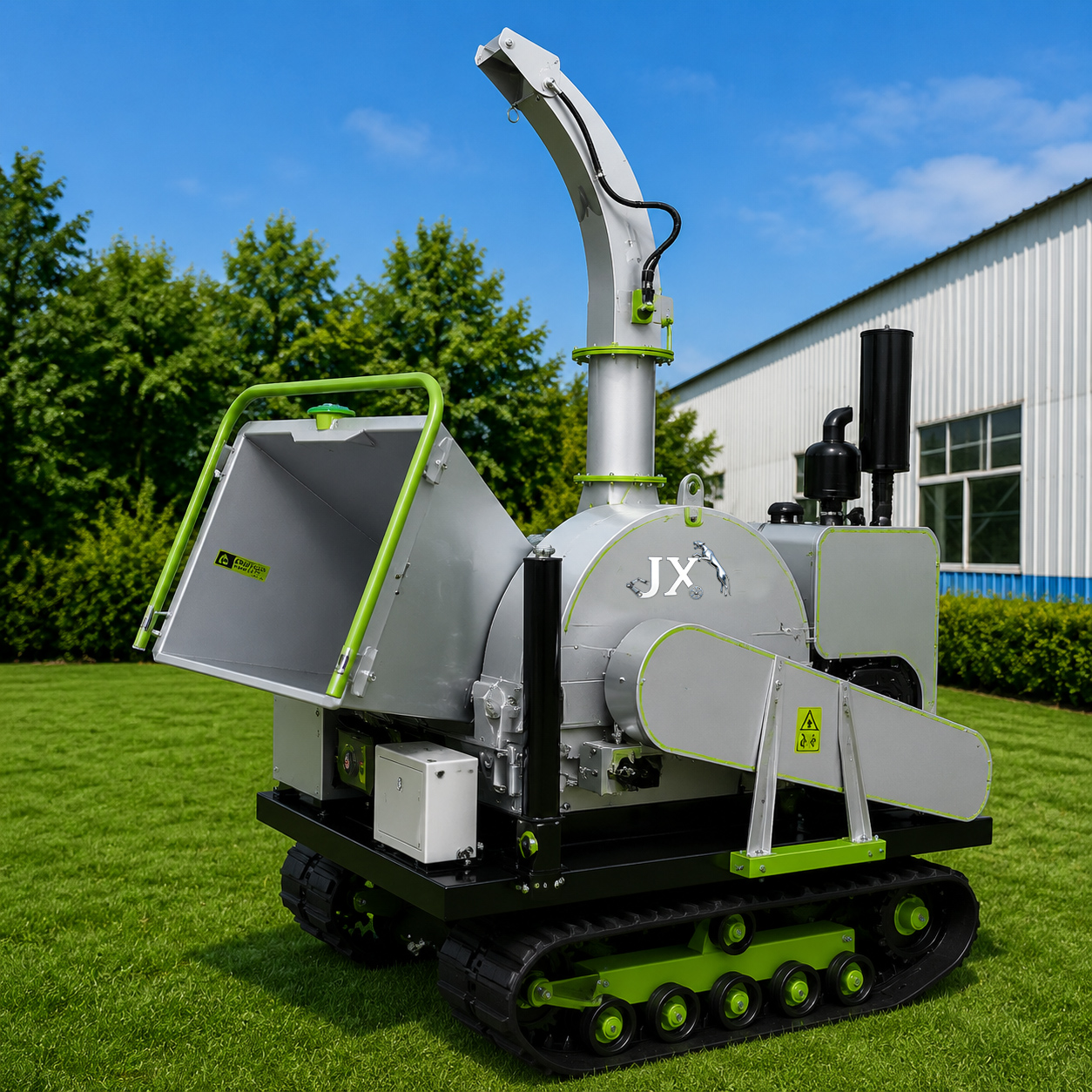

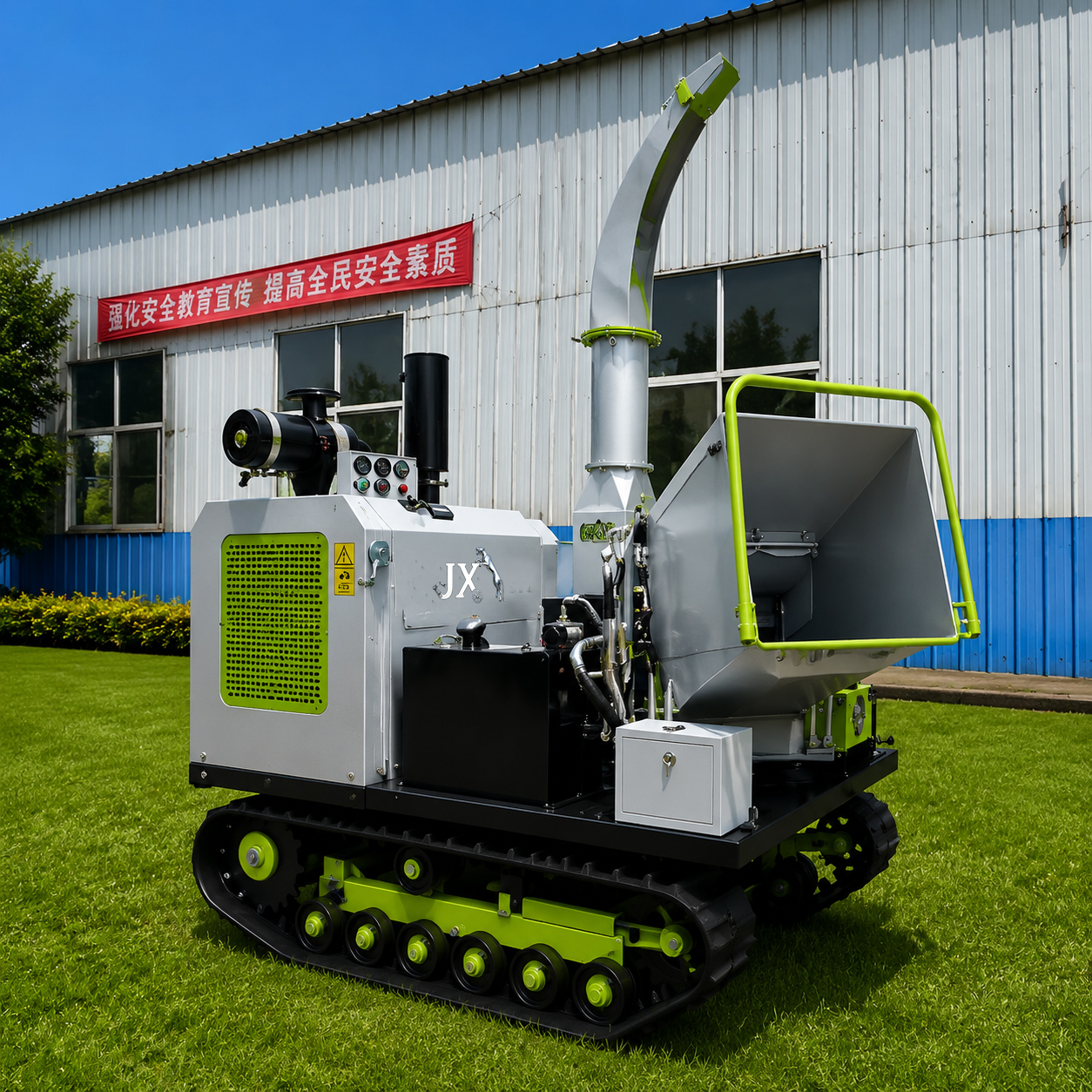

JX C80H Heavy-Duty Tracked Wood Chipper: Industrial-Scale Processing for High-Volume Operations

250mm Capacity | 940mm Rotor | 80HP Diesel | 20-25 m³/h

The JX C-80H is an industrial-scale tracked wood chipper built for the most demanding timber processing and land clearing operations of 2026. Where smaller chippers slow down, the W-80H powers through — processing branches and whole trees up to 250mm (10 inches) in diameter at a staggering 20-25 cubic meters per hour. Powered by an 80HP diesel engine and equipped with a massive 940mm disc rotor weighing 171kg, this machine transforms woody waste into uniform chips with brutal efficiency. For forestry contractors, utility vegetation managers, and large-scale land clearing specialists, the JX C-80H is the difference between keeping up and leading the pack.

Massive Cutting Capacity

The W-80H starts where others stop. The 620×620mm hopper opening accepts branch material and whole tree sections up to 250mm in diameter — eliminating the need for pre-cutting most material. The dual hydraulic feed rollers pull material into the cutting chamber automatically, adjusting to branch density for consistent throughput. Four reversible knives (65Mn/A8 tool steel) mounted on the 940mm rotor create chips under 4mm, ideal for biomass fuel, landscaping mulch, or composting operations.

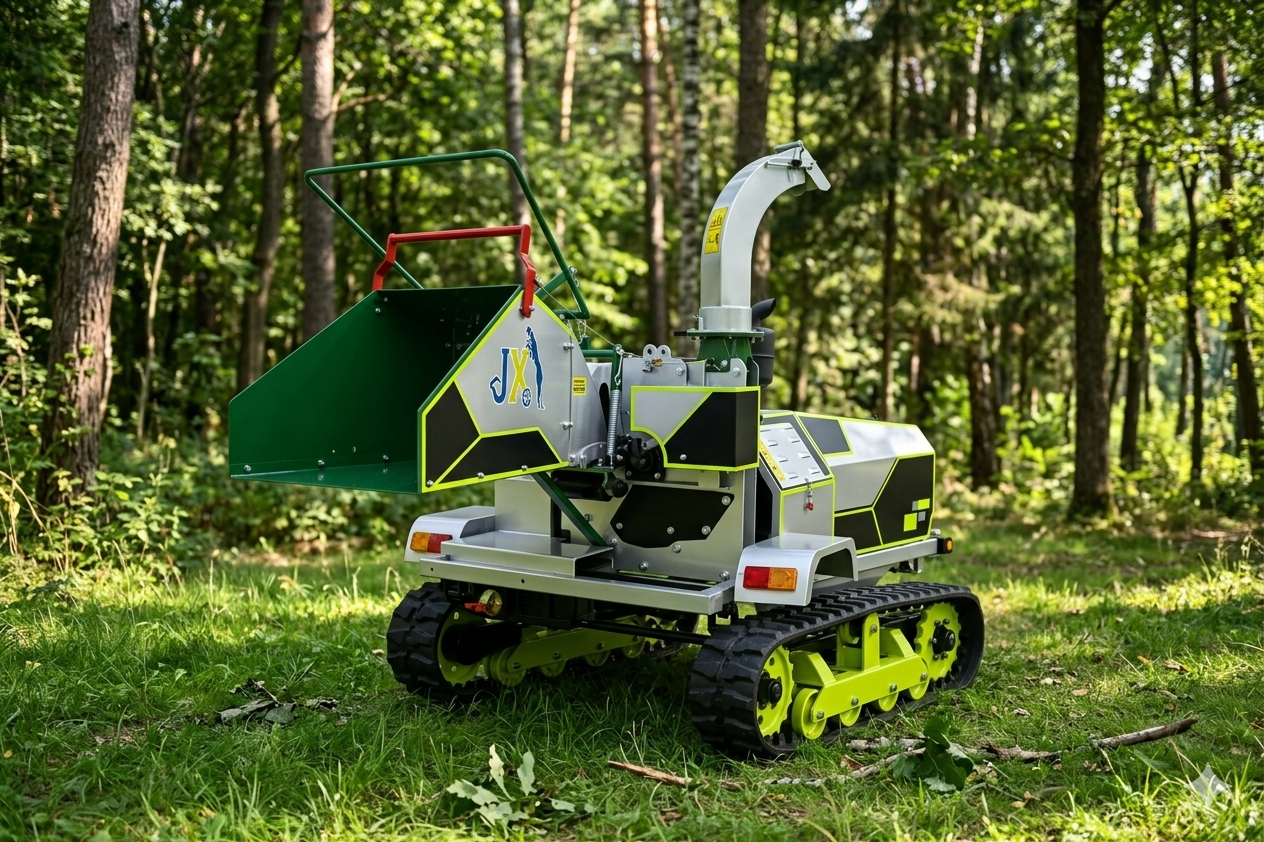

Tracked Mobility for Remote Job Sites

Weighing 1638kg and riding on a heavy-duty tracked undercarriage, the W-80H goes where towed chippers cannot tread — deep into forests, across soft ground, and up slopes that would stop wheeled machines. The 2120×1460×2120mm footprint provides stability during operation while remaining transportable on standard low-bed trailers. The packing dimensions match the machine size, simplifying international shipping logistics.

Commercial-Grade Diesel Power

At the heart of the W-80H beats an 80HP diesel engine — the powerplant that makes 250mm chipping possible. The liquid-cooled, 4-stroke diesel delivers consistent torque across all operating speeds, maintaining rotor inertia even when processing frozen hardwoods or dense green vegetation. A standard electric start system ensures reliable ignition in all weather conditions.

Dual Hydraulic Feed with Instant Reverse

The fully hydraulic feed system gives operators complete control: forward, stop, and reverse at the touch of a lever. When a branch binds or an oversize knot stalls progress, the reversible feed rollers back material out instantly — no climbing, no prying, no downtime. This safety feature alone makes the W-80H a favorite among crews who have experienced jammed chippers in the field.

Built for All-Day Operation

The 940mm rotor carries serious mass — 171kg of balanced steel and tungsten-alloy knives. That inertia translates to consistent cutting power, even when the engine lugs under heavy load. The oversized rotor bearings and reinforced frame are designed for continuous commercial use, not occasional weekend work.

Specifications at a Glance

Who Needs the JX C-80H?

Why Choose the JX C-80H?

When 6 inches isn’t enough. When daily volume demands industrial scale.

Choose the JX C-80H.
