ATV-15
Products Description

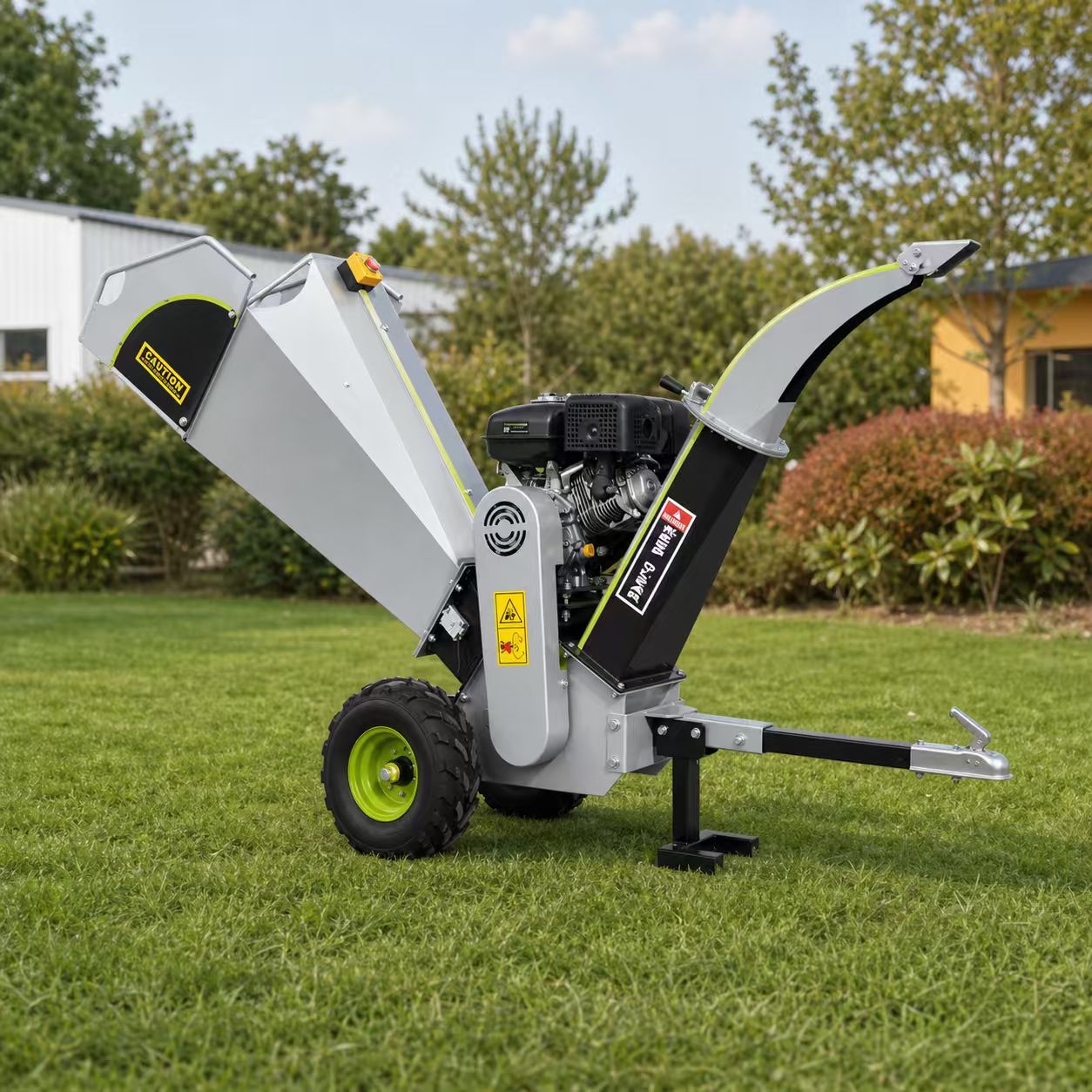

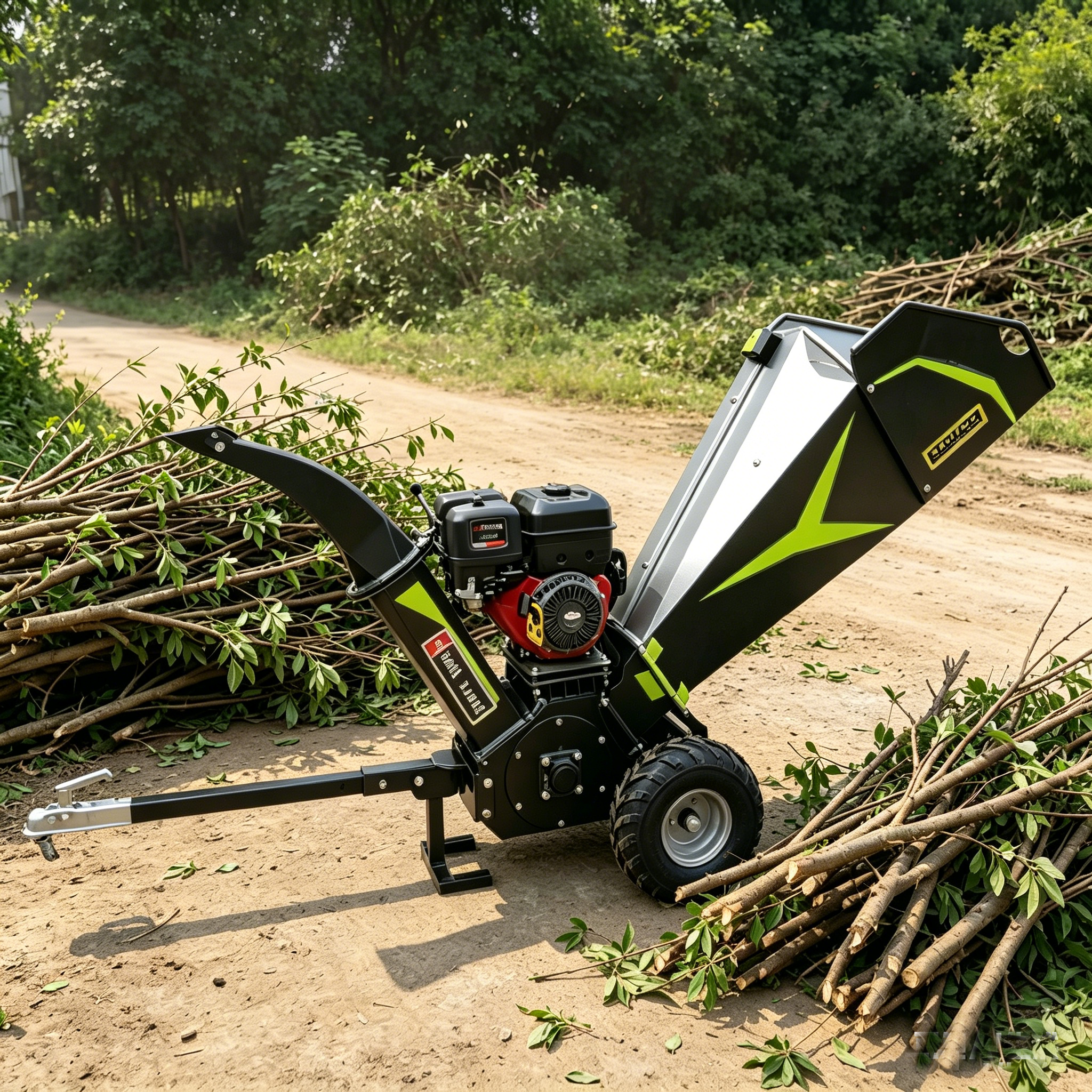

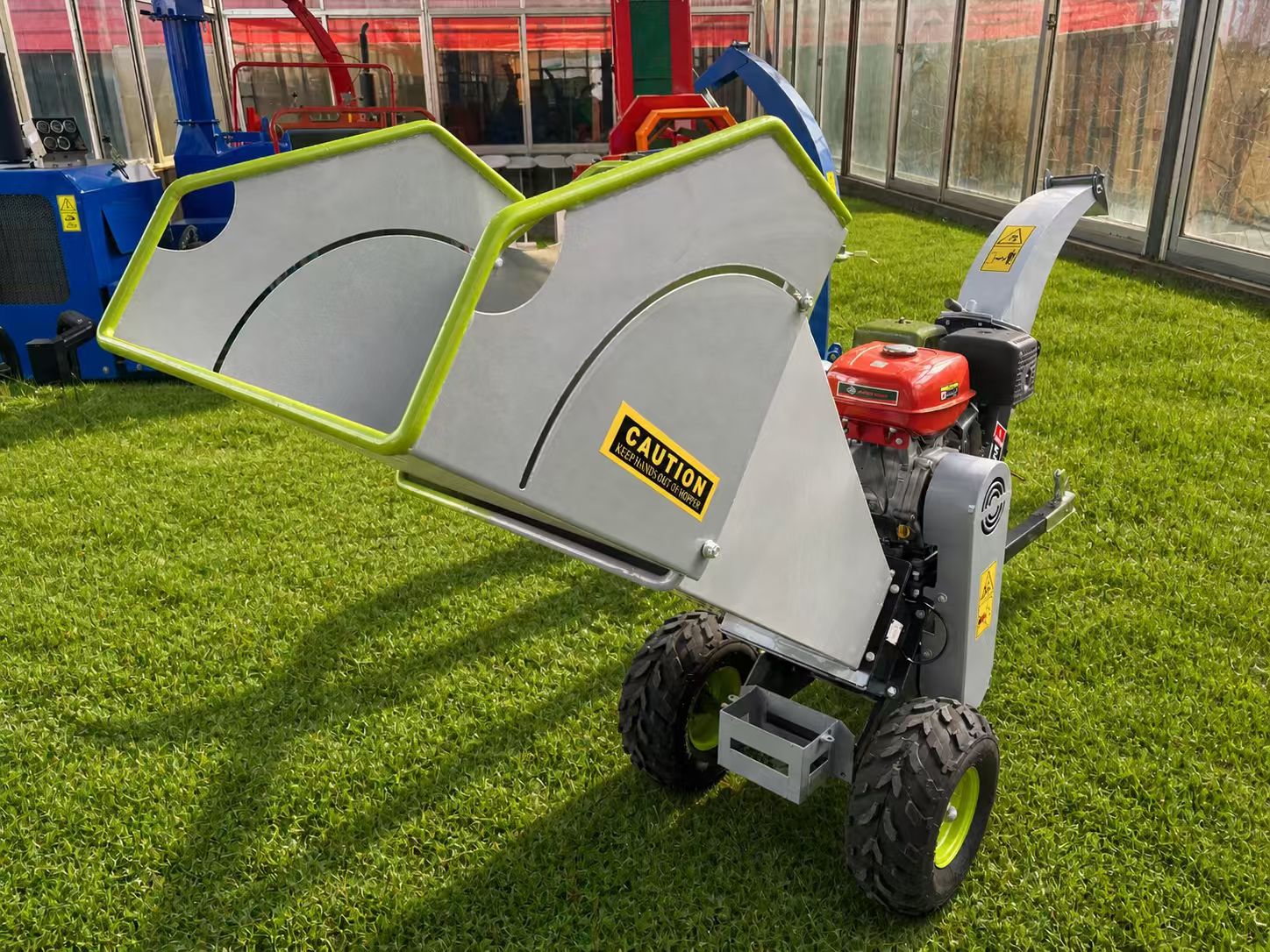

JX ATV-15 Self-Powered Wood Chipper: Compact Branch Processing for ATVs and Small Properties
4-Inch Capacity | 15HP Gas Engine | 2600 RPM | Towable Design
The JX ATV-15 is a lightweight, self-powered wood chipper designed for ATV owners, small property managers, and weekend landowners who need branch processing capability without a tractor. Unlike PTO-driven chippers that require a separate power source, the ATV-15 comes with its own 15HP gasoline engine — hook it to an ATV, UTV, or garden tractor, and you’re ready to chip. With a 4-inch (100mm) chipping capacity and compact towable design, this machine turns fallen limbs and pruning debris into useful wood chips wherever you work.
Self-Powered Simplicity
The ATV-15 eliminates the need for PTO shafts, hydraulic connections, or tractor compatibility worries. Its 15HP 4-stroke gas engine provides independent power — start the engine, feed branches, and chip. The centrifugal clutch engages only when the engine reaches operating speed, protecting the drivetrain during startup and allowing the rotor to coast to a stop when you throttle down. This is a chipper that works with any towing vehicle, from ATVs to lawn tractors to small pickup trucks.
4-Inch Chipping Capacity
The numbers are straightforward: a 4-inch (100mm) chipper opening swallows branches up to wrist-thick without pre-cutting. Two reversible 65Mn/A8 steel knives mounted on the rotor turn branch waste into uniform chips. The 11×5-inch hopper opening accepts bushy material while keeping hands safely away from the cutting chamber.
High-Speed Rotor
The rotor spins at 2600 RPM — significantly faster than tractor PTO chippers. This high rotational speed delivers clean cuts and produces consistent chip sizes. The centrifugal clutch allows the engine to reach optimal torque before the rotor engages, preventing bogging during startup.
Towable and Portable
Weighing just 254kg and packing down to 1140×830×1230mm, the ATV-15 is easy to tow behind an ATV, lawn tractor, or small utility vehicle. The overall working dimensions are 2800×750×1430mm, with 16×8-7 tires providing stable towing and positioning. A standard trailer hitch connection means you can move from job to job without a dedicated truck or trailer.
Who Needs the JX ATV-15?
| User | Application |
| ATV Owner | Clear trails, process fallen limbs, maintain woodlots |
| Small Property Owner | Turn yard waste into mulch or compost |
| Orchardist / Vineyard Manager | Chip annual pruning on-site |
| Horse Farm Operator | Process bedding material from cleared brush |
| Campground / Park | Maintain natural areas, clear storm debris |
📋 JX ATV-15 Technical Specifications
| Parameter | Specification |
| Model | JX ATV-15 |
| Chipper Capacity (Max. Branch Dia.) | 4 inches (≈100 mm) |
| Clutch Type | Centrifugal clutch |
| Rated RPM | 2600 rpm |
| Number of Rotor Knives | 2 (reversible) |
| Knife Material | 65Mn / A8 tool steel |
| Hopper Opening (W×H) | 11 × 5 inches (≈280 × 127 mm) |
| Tire Size | 16 × 8-7 |
| Packing Size (L×W×H) | 1140 × 830 × 1230 mm |
| Overall Size (L×W×H) | 2800 × 750 × 1430 mm |
| Gross Weight | 254 kg |
| Drive Power | 15HP gasoline engine |
| Power Required | Self-contained (15 HP) |
💪 Why Choose the JX ATV-15?
| Feature | What It Means for You |
| 15HP Self-Powered Engine | No tractor, no PTO — works with any tow vehicle |
| 4-Inch Chipping Capacity | Process branches up to wrist-thick |
| Centrifugal Clutch | Smooth engagement, protects drivetrain |
| 2600 RPM Rotor Speed | High-speed cutting for clean chips |
| Towable Design | Move behind ATV, lawn tractor, or small truck |
| 254kg Light Weight | Easy to maneuver and store |
| 16×8-7 Tires | Stable towing and positioning |
| Reversible 65Mn/A8 Knives | Double life — flip when dull |
What’s in the Box
JX ATV-15 Self-Powered Wood Chipper (1 unit)
15HP gasoline engine (installed)
Centrifugal clutch (installed)
Tow hitch assembly
Set of 2 reversible knives (installed)
Operator manual
The Bottom Line
Not everyone has a 100HP tractor with a PTO. The JX ATV-15 is for everyone else. Hook it to an ATV, lawn tractor, or small utility vehicle, and you’re in the chipping business. Four-inch capacity. Fifteen horsepower. Twenty-six hundred RPM. No second vehicle needed.
Tow it. Chip it. Move on.
Choose the JX ATV-15.
