JX-8H
Products Description

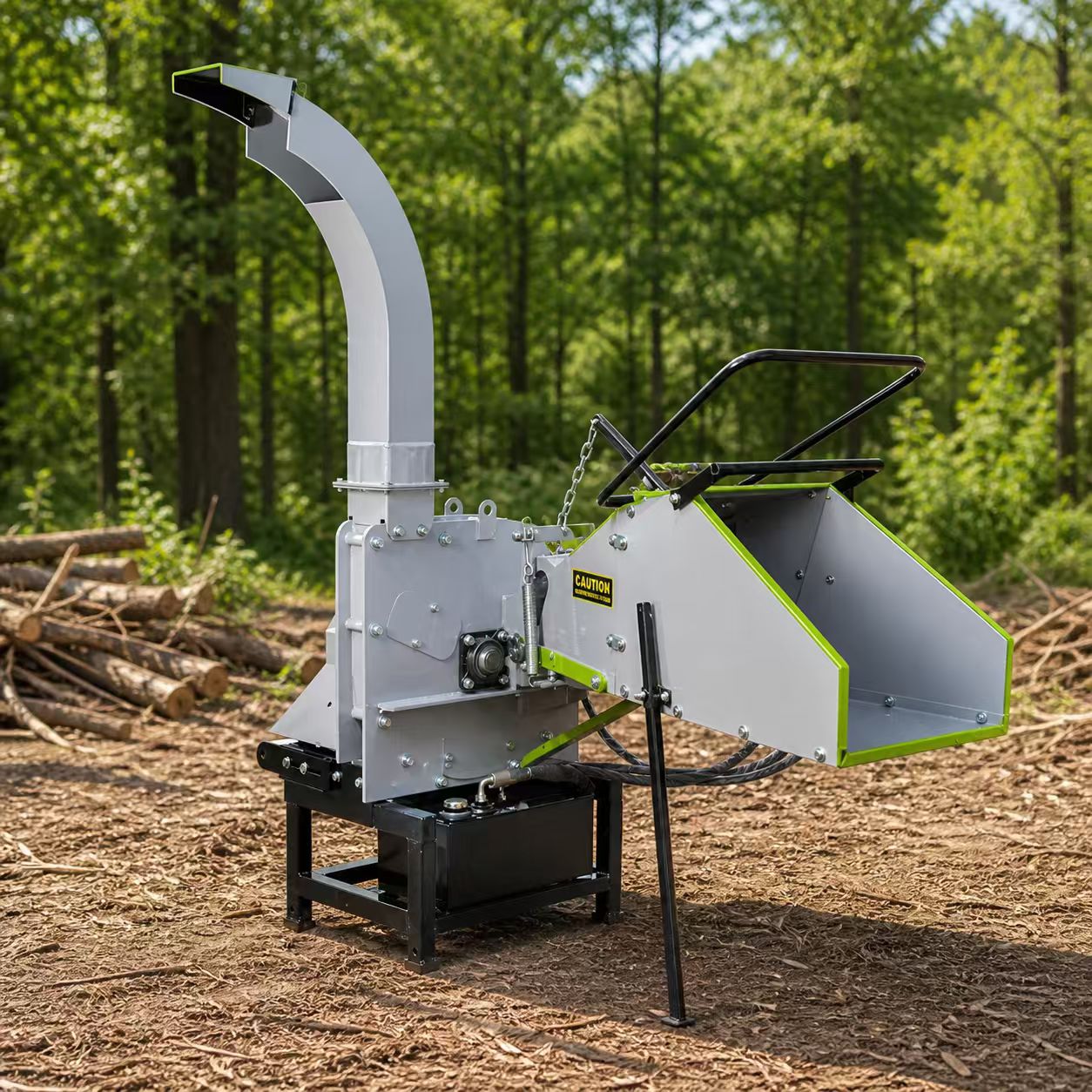

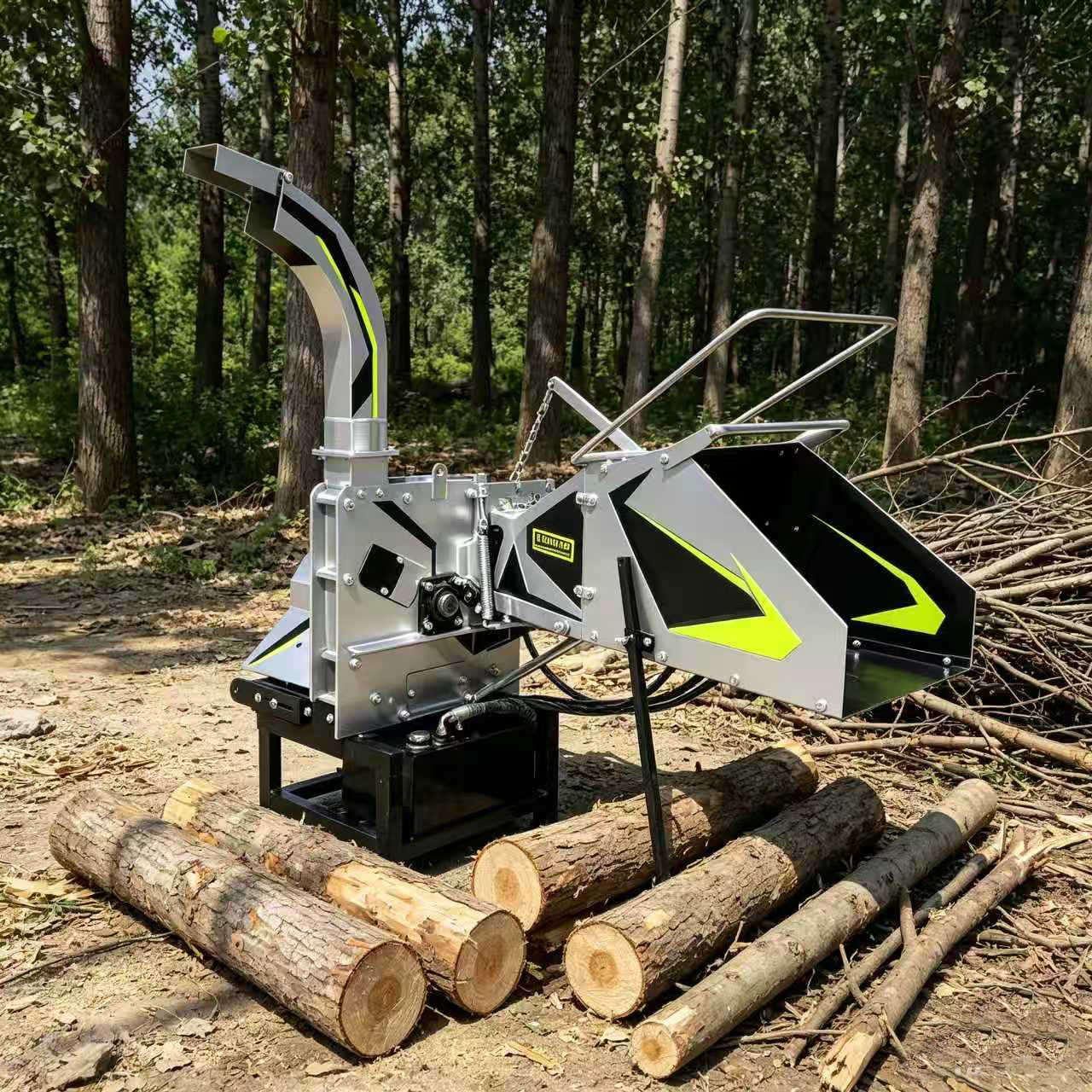

JX W-8H PTO Wood Chipper: Tractor-Powered Performance for Farm and Forestry
200mm Capacity | 600mm Rotor | 30-80HP Tractor | 9-12 m³/h
The JX W-8H is a compact yet powerful PTO-driven wood chipper designed for landowners, farmers, and tree care professionals who already own a tractor. Instead of investing in a separate engine, the W-8H harnesses your tractor’s rear power take-off (PTO) to turn branch waste into valuable wood chips. With a 200mm chipping capacity and 9-12 cubic meters per hour output, this machine bridges the gap between small-scale chippers and commercial equipment — at a fraction of the cost.
Tractor-Powered Simplicity
The W-8H connects directly to your tractor’s PTO shaft, operating at speeds between 540 and 1000 RPM. No separate engine means no emissions certification hassles, no second fuel tank to fill, and one less engine to maintain. For operations that already have a tractor in the shed — from small farms to municipal maintenance crews — the W-8H turns an existing asset into a wood processing workhorse.
200mm Chipping Capacity
The numbers tell the story: a 200mm chipper opening swallows branches up to 8 inches in diameter. The 600mm disc rotor weighs 57kg, storing enough inertia to power through hardwoods without bogging down your tractor. Two or four reversible 65Mn/A8 tool steel knives mounted on the rotor produce consistent chips, while the 200×220mm hopper opening accepts bushy material with minimal limb trimming.
Dual Hydraulic Feed with Instant Reverse
Unlike simple PTO chippers that rely on manual feeding, the W-8H features a dual hydraulic feed roller system. The hydraulic drive pulls branches into the cutting chamber automatically, adjusting speed to match material density. When a branch binds or a knot stalls progress, the instant reverse function clears the jam without stopping the PTO or opening safety covers — keeping you safe and productive.
Compact, Towable Design
The W-8H weighs just 410kg and packs down to 1150×910×1240mm — small enough to store in a corner of the barn and light enough to move by hand. The overall working dimensions are 1900×1300×1850mm, providing a stable footprint during operation. A standard tractor three-point hitch mount means you can attach, detach, and transport the chipper in minutes.
Wide Tractor Compatibility
The W-8H works with tractors ranging from 30 to 80 horsepower — covering everything from compact utility tractors to mid-range row-crop machines. The PTO-driven design puts minimal hydraulic demand on the tractor; the chipper’s feed rollers use their own hydraulic pump driven by the PTO, not the tractor’s hydraulic system.
Who Needs the JX W-8H?
| Operation | Why the W-8H Fits |
| Small Farm | Process pruning, fallen limbs, and windbreak debris |
| Orchard / Vineyard | Turn annual pruning into mulch or compost |
| Tree Service | Chip on-site without a dedicated chipper engine |
| Municipal Crew | Clear storm damage and roadside vegetation |
| Landowner | Clean up woodlots and fencerows |
📋 JX W-8H Technical Specifications
| Parameter | Specification |
| Model | JX W-8H |
| Chipper Capacity (Max. Branch Dia.) | 200 mm (8 inches) |
| Disc Diameter | 600 mm |
| Rotor Plate Weight | 57 kg |
| Rated RPM | 540-1000 (PTO speed) |
| Number of Rotor Knives | 2 or 4 (reversible) |
| Knife Material | 65Mn / A8 tool steel |
| Hopper Opening (W×H) | 200 × 220 mm |
| Feeding System | Dual hydraulic feed rollers (forward/stop/reverse) |
| Packing Size (L×W×H) | 1150 × 910 × 1240 mm |
| Overall Size (L×W×H) | 1900 × 1300 × 1850 mm |
| Gross Weight | 410 kg |
| Drive Power | Tractor PTO (540-1000 RPM) |
| Power Required | 30-80 HP |
| Working Efficiency | 9-12 m³/h |
💪 Why Choose the JX W-8H?
| Feature | What It Means for You | |
| 200mm Chipping Capacity | Process 8-inch branches — no pre-cutting needed | |
| Tractor PTO Powered | No separate engine to buy, fuel, or maintain | |
| 30-80 HP Compatibility | Works with most compact and utility tractors | |
| Dual Hydraulic Feed | Self-feeding with reverse — no manual pushing | |
| **57kg Rotor | 600mm Disc** | Stored inertia for consistent cutting power |
| Reversible 65Mn/A8 Knives | Double life — flip, don’t sharpen | |
| 410kg Light Weight | Easy to attach, detach, and store | |
| 9-12 m³/h Efficiency | Process a full pickup load in under an hour |
What’s in the Box
JX W-8H PTO Wood Chipper (1 unit)
PTO shaft with universal joints
Dual hydraulic feed roller system (installed)
Set of 2 or 4 reversible knives (as ordered)
Operator manual
The Bottom Line
You already own the power source — your tractor. The JX W-8H puts that power to work turning branch waste into valuable wood chips. No separate engine. No emissions paperwork. No second fuel bill. Just 200mm of chipping capacity, 9-12 cubic meters per hour, and the freedom to process woody debris whenever the tractor leaves the shed.
Attach. Chip. Detach. Get on with your day.
Choose the JX W-8H.
